WEX International Limited

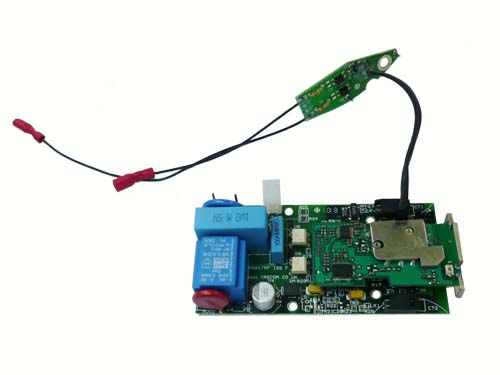

W2016 (Flex Receiver Board + Decoder Board
W2016 (Flex Receiver Board + Decoder Board
Brief Detailed
W2015 + W2016 (Flex Receiver Board + Decoder Board) SPECIFICATIONS
Version 1.0

Frequency Range
928-932MHz Bands
Channel Spacing
25KHz
Signal Format
FLEX
Data Transmission Rate
1600bps or 3200bps or 6400bps
Modulation System
Carrier frequency shift keying (NRZ)
Frequency Deviation
±4.8KHZ
Receiving Sensitivity
1600bps 8uV/m, 3200bps 10uV/m, 6400bps 12uV/m
Selectivity
50 Db
Spurious Rejection
More than 50 dB
Image Rejection
40dB (928-932MHz)
Frequency Stability
±3PPM (928-932MHz)
